40 Foot Straight Frame Container Chassis

Product Documents:     Click for 40 Foot Straight Frame Chassis Flyer

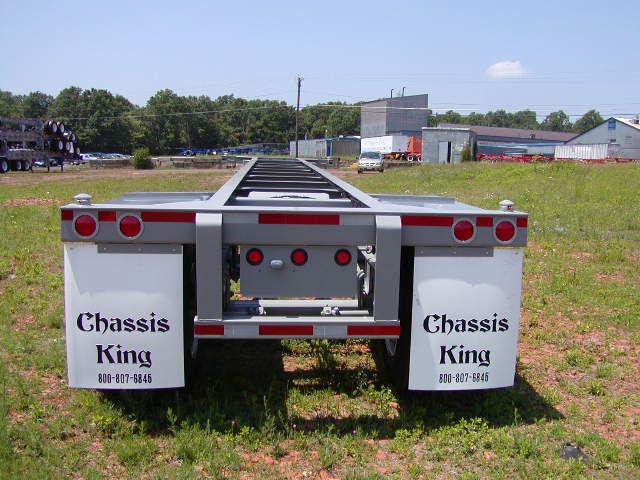

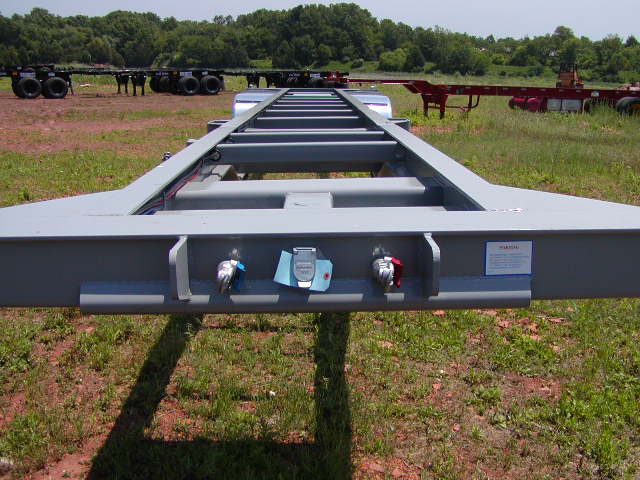

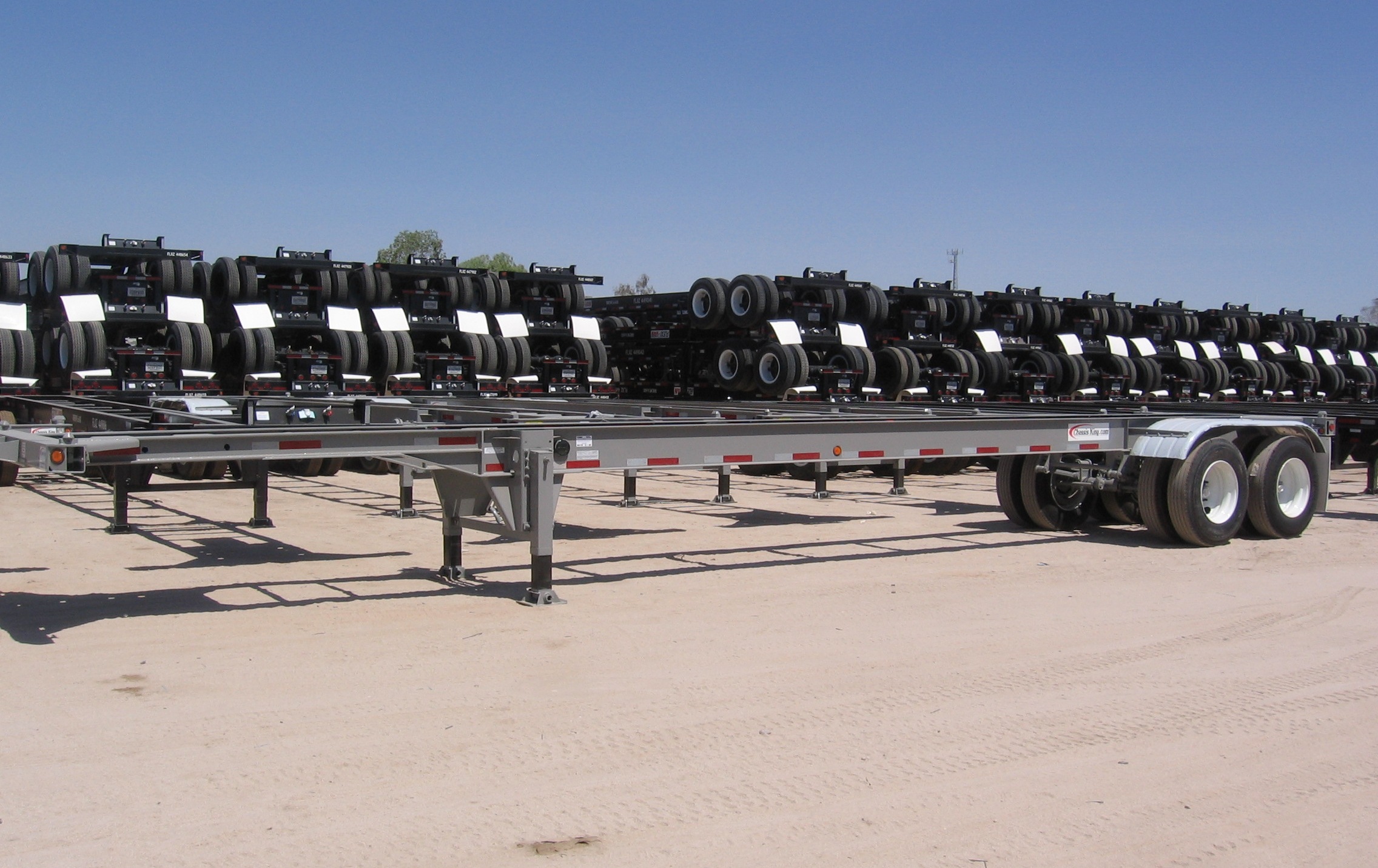

40 Foot Straight Frame Container Chassis
40 Foot Straight Frame Container Chassis

40 Foot Straight Frame Container Chassis
40 Foot Straight Frame Container Chassis

40 Foot Straight Frame Container Chassis
40 Foot Straight Frame Container Chassis

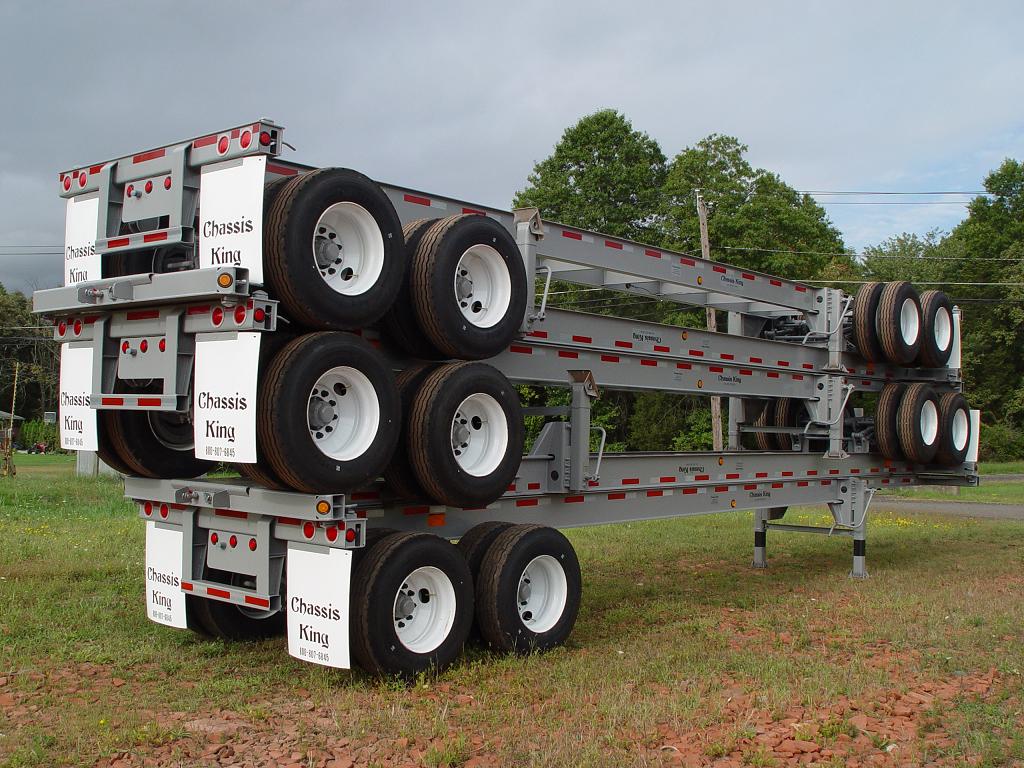

40 Foot Straight Stacked for Shipping
40 Foot Straight Stacked for Shipping

40 foot straight frame chassis are needed for 40 foot containers without tunnels. Some custom built 40 foot containers are being built without tunnels which makes it impossible for the container to fit a standard 40 foot gooseneck type chassis. So if you are carrying custom made containers it important to identify whether your container has a tunnel. The 40 foot straight frame chassis will carry flat and tunnel type containers 8 foot 6 inches high.

Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.

Chassis come standard with 10x20 tires on 5 spoke wheels and spring suspension.  Options include air suspension and 11R22.5 tires on 10-hole disc wheels.

Stacked 5 high for power only transport

40 Foot Straight Frame Chassis Specifications:
Overall Length:  40’-10”
Overall Width: 96”
King Pin Location: 30” from rear face of front bolster
Coupler Height:  48”
Tare Weight: 6,600 lbs
Main Rails: Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams. Wide flange 12” in depth 19 lbs/ft.
Landing Gear: Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension: Hutch with Three Leaf Springs (11,000 lb capacity each)
Axles: Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters
Brake System: Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels  10.00 x 20 tires on 5 spoke wheels
Electrical: 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Twist Locks: Cast steel to engage ISO corner castings
Paint:    Commercial sandblast, primer, and high quality paint system
Other: Conspicuity Tape, Bumper, 24 x 30 Mud Flaps
