40 Foot Lightweight Chassis

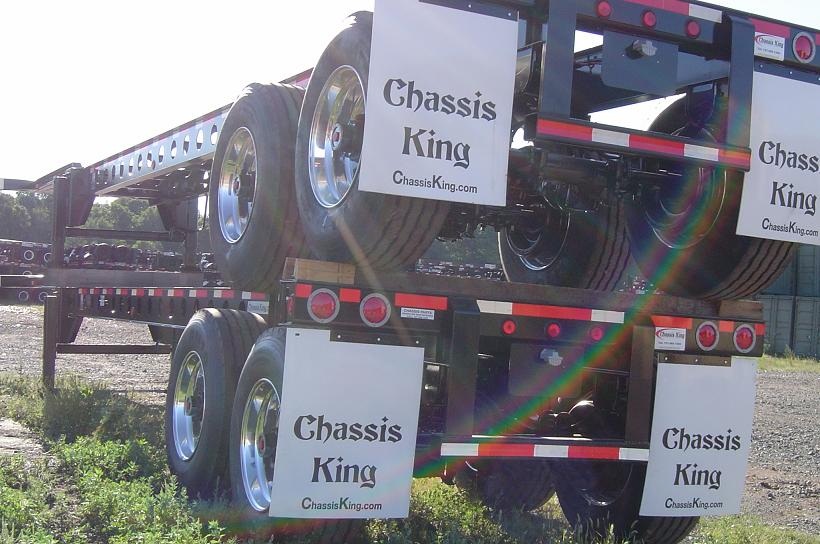

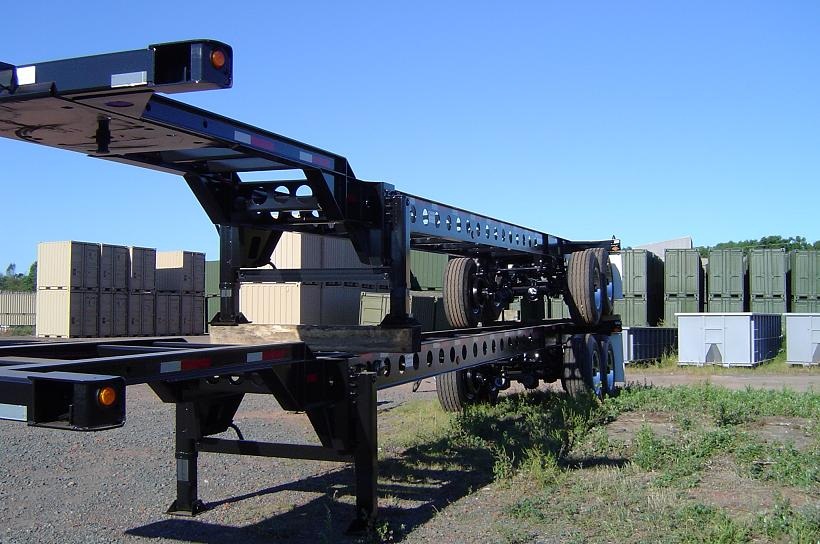

40ft Lightweight Chassis
40ft Lightweight Chassis

40ft Lightweight Chassis
40ft Lightweight Chassis

Hitting the scale at 5,150 lbs, our 40' lightweight chassis is built for those who want to haul more without compromising reliability.

Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA).

Low profile radial tires, aluminum wheels, and lighter hub are some of the components that help with weight reduction.

40 Foot Lightweight Gooseneck Chassis Specifications:


Overall Length:

40’-10”

Overall Width:

96”

King Pin Location:

30” from rear face of front bolster

Coupler Height:

48”

Tare Weight:

5,150 lbs

Main Rails:

Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams.

Landing Gear:

Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes

Suspension:

Single Leaf Spring Suspension

Axles:

Two axles of  5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters

Brake System:

Meritor Wabco 2S/1M Anti-lock Braking System;  30/30 Spring brake chambers

Tires / Wheels

255/70R22.5 tires on 10-hole Aluminum wheels

Electrical:

12 Volt with plug type connectors,  7-way plug, sealed wire harnesses and lights

Twist Locks:

Cast steel to engage ISO corner castings

Paint:

Commercial sandblast, primer, and high quality paint system

Other:

Conspicuity Tape, Bumper, 24 x 30 Mud Flaps
