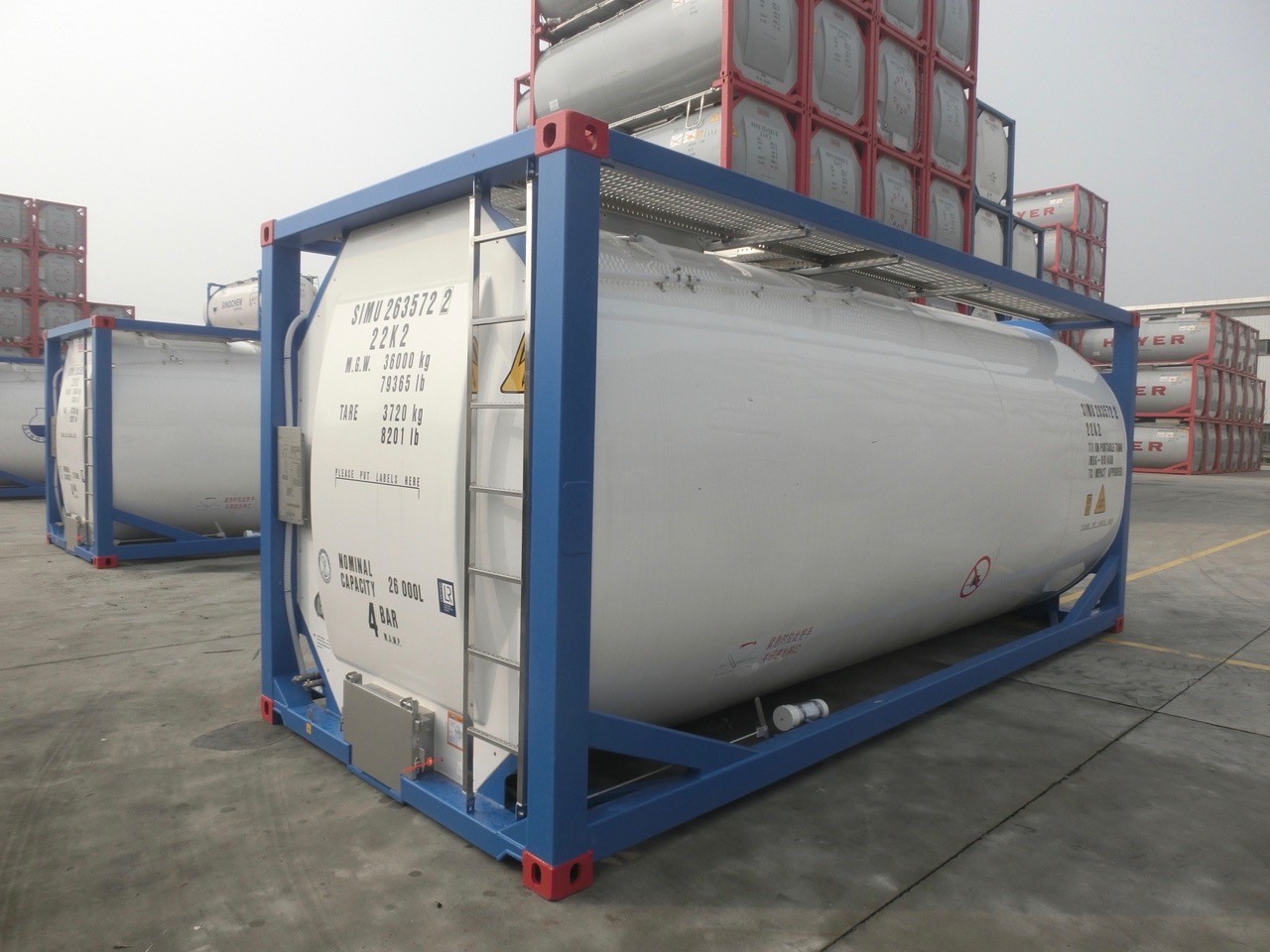

Milk Tank Containers

Frame Material

JIS G3125 SPA-H or equivalent

Tank Material

ASTM A240 – 304, W.NR. 1.4301

Capacity

23,000 Ltr (± 2.0%)

Frame (Length/Height/Width)

6058mm / 2591mm / 2438mm

Tare Weight

3280 kg (± 3% Tolerance)

Max Gross Weight

36,000 kg

Working pressure:

0.50 bar

Insulation

PIR (40kg/M³) 100mm thick
