Spread Axle Drop Frame ISO Tank Chassis

Product Documents:     Click for 43ft Spread Axle Tank Chassis Flyer

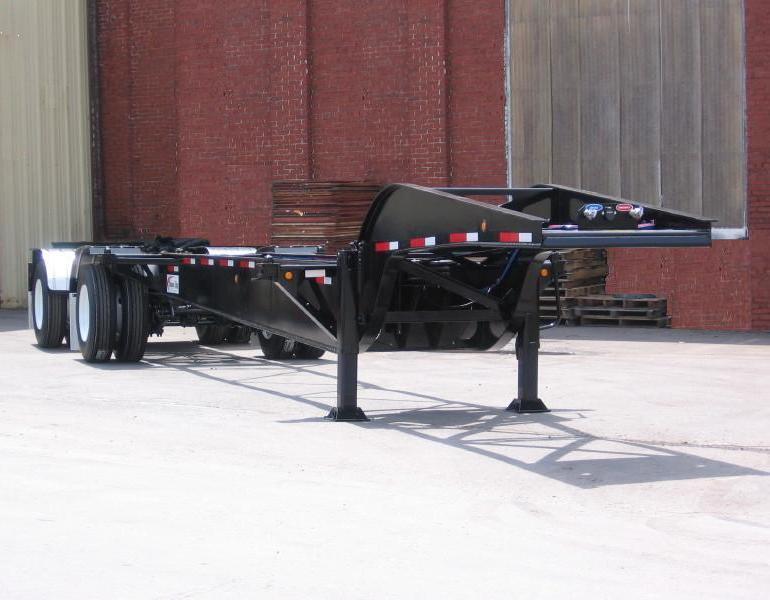

Spread Axle Drop Frame Tank Chassis
Spread Axle Drop Frame Tank Chassis

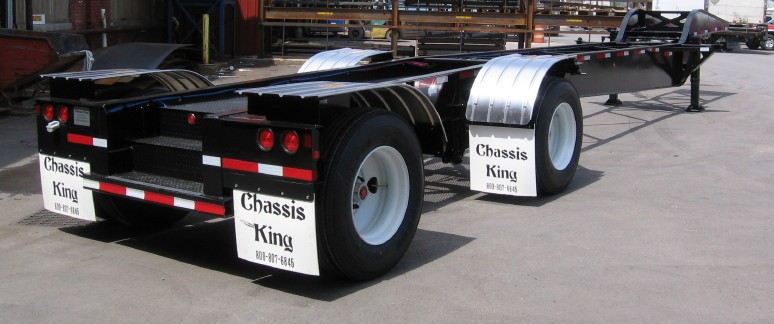

Rear of Spread Axle Tank Chassis
Rear of Spread Axle Tank Chassis

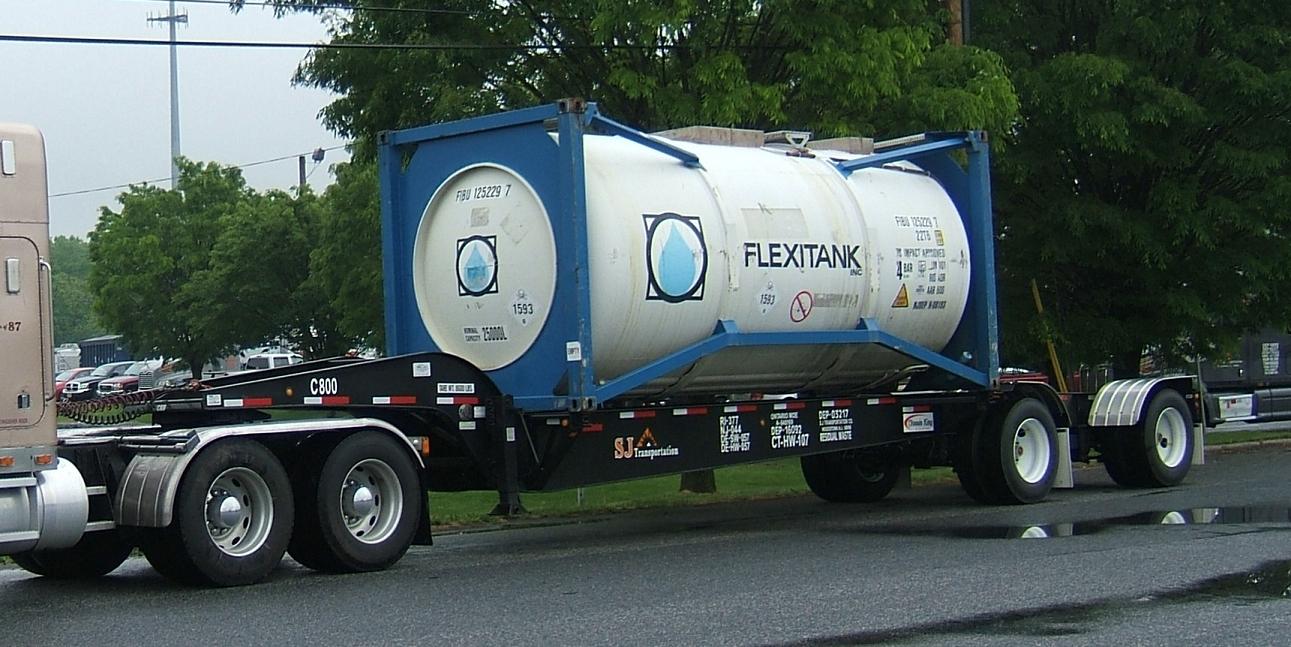

Spread Axle Chassis with ISO Tank
Spread Axle Chassis with ISO Tank

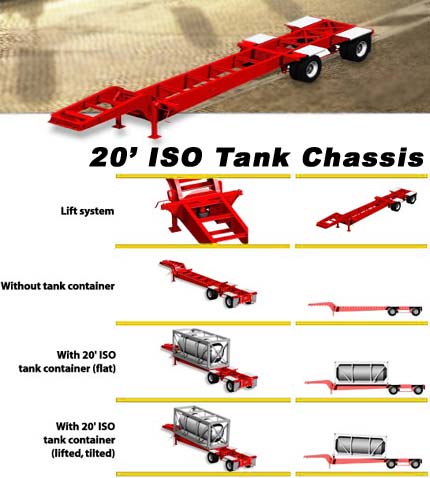

3D Modeling of Drop Frame Tank Chassis
3D Modeling of Drop Frame Tank Chassis

The attraction to this tank chassis is inevitable. Every detail precisely engineered from the sweeping curves to the circular welds. Notice the lack of right angles. The low frame height of 41. 5 in (at container) helps prevent roll over. Not to mention the different web depths throughout the main beams.  And at a tare weight 7400 lb, it is lightweight for a 43 ft long chassis.  Designed to handle a 20 ft ISO tank container (ISO tank),  a 20 ft ISO dry freight container, or a Conex box at the rear of drop.

Drop Frame chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and  Truck Trailer Manufacturers Association (TTMA) standards.


Low profile tires on 10-hole hub piloted disc wheels, spring suspension, ABS, plastic fenders, and two-speed landing legs are all standard. The chassis is lift ready with lift kit optional. Other options include step deck, aluminum wheels and hubs, and air ride.

Tank Chassis can be stacked up to 3 high for power only transport

43 Foot Spread Axle Tank Chassis Specifications:
Overall Length:  43’-3”
Overall Width: 96”
King Pin Location: 15"
Coupler Height: 48"
Frame Height:  41.5” at container
Tare Weight: 7,400 lbs
Main Rails: Fabricated high strength steel main beams
Landing Gear: Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension: Hutch with Two Leaf Springs
Axles: Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters
Brake System: Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels  255/70R22.5 tires on 10-hole disc wheels
Lift Kit: Lift ready but kit is optional
Electrical: 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Twist Locks: Cast steel to engage ISO corner castings
Paint:    Commercial sandblast, primer, and high quality paint system
Other: Conspicuity Tape, Bumper, 24 x 30 Mud Flaps, Fenders
