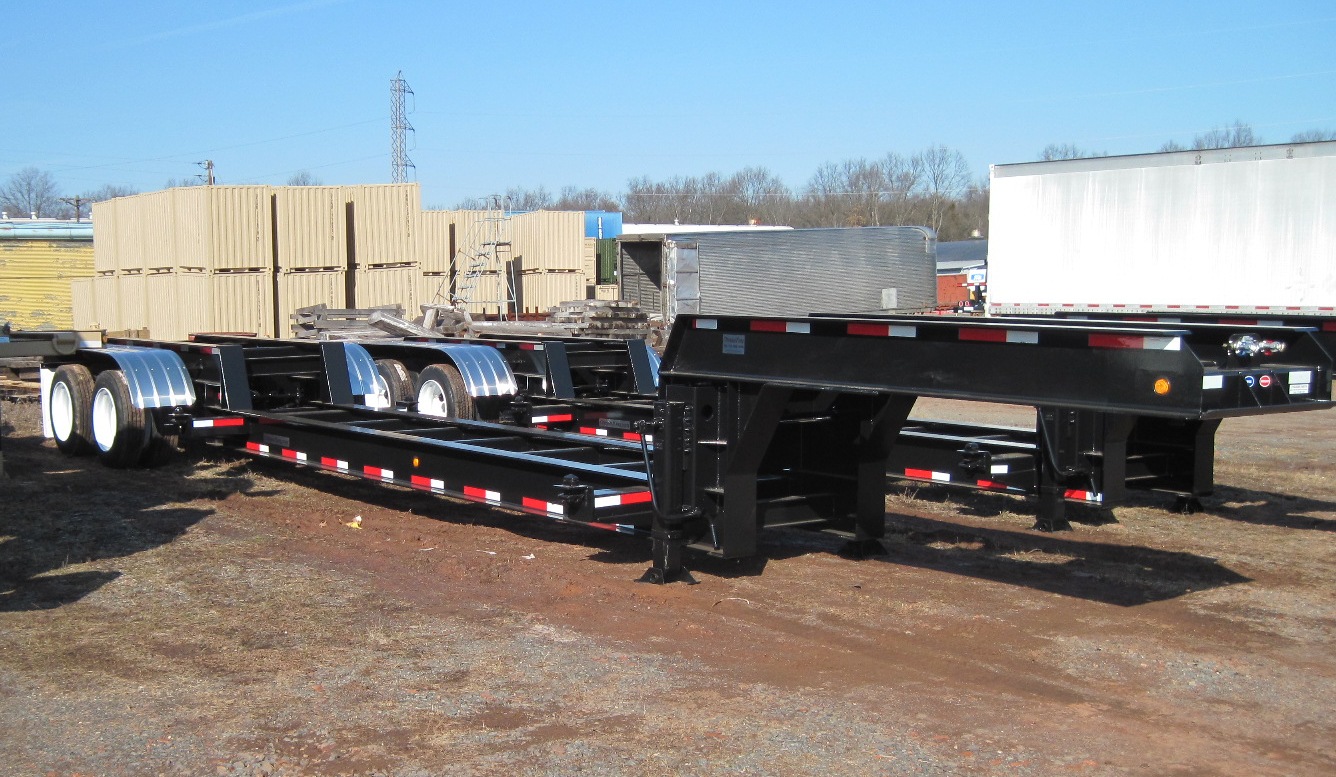

Double Drop ISO Tank Chassis

Product Documents: Click for 43ft Double Drop Tank Chassis Flyer

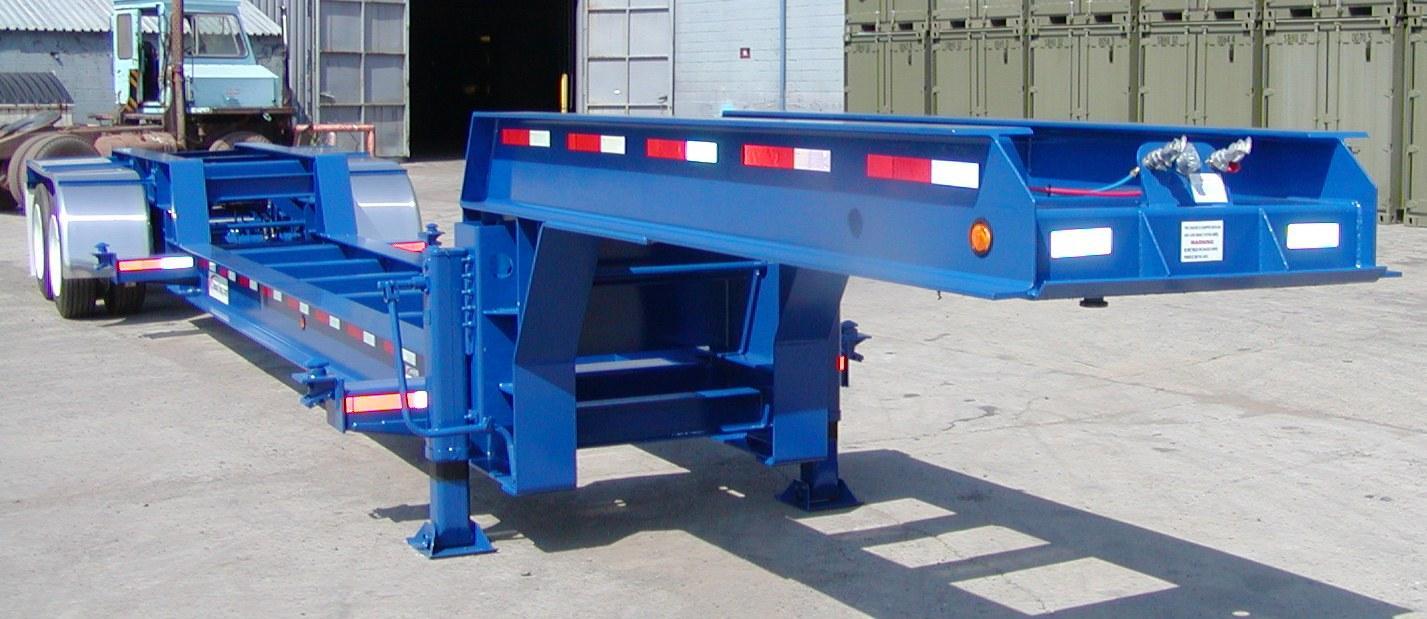

Double drop container chassis

Low Deck Height Model

For times when you need to get the overall height of the 20 foot tank container even lower, Chassis King offers a low 24 inch deck height double drop model. This chassis model is also popular for 20ft flat rack loads with cargo that is over height on standard chassis.

IN STOCK AND AVAILABLE FOR IMMEDIATE DELIVERY NOW!!

43 Foot Double Drop Tank Chassis Specifications:

Overall Length:	43’-3”
Overall Width:	102”
King Pin Location:	18"
Coupler Height:	48"
Deck Height:	24” in the center
Tare Weight:	8,500 lbs
Main Rails:	Fabricated high strength steel main beams
Landing Gear:	Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension:	Hutch with Three Leaf Springs (11,000 lb capacity each)
Axles:	Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters
Axle Centers:	49"
Brake System:	Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels	255/70R22.5 tires on 10-hole disc wheels
Electrical:	12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Twist Locks:	Cast steel to engage ISO corner castings
Paint:	Commercial sandblast, primer, and high quality paint system
Other:	Conspicuity Tape, Bumper, 24 x 30 Mud Flaps, Fenders
