Container Casters

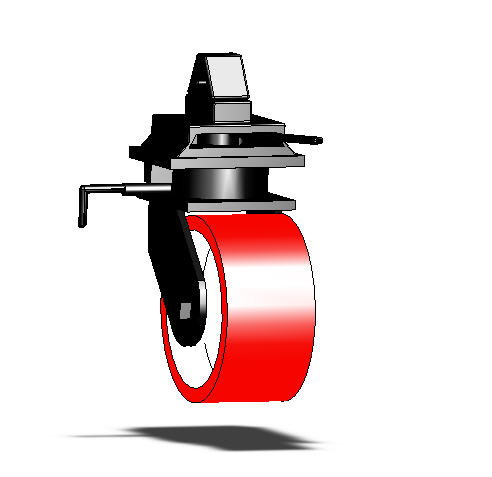

Container Caster Render
Container Caster Render

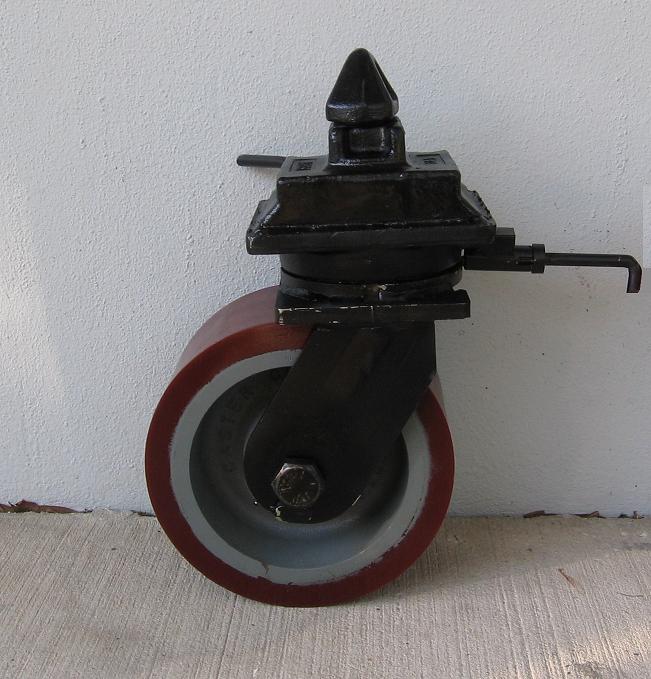

Container Caster with Polyurethane Wheel
Container Caster with Polyurethane Wheel

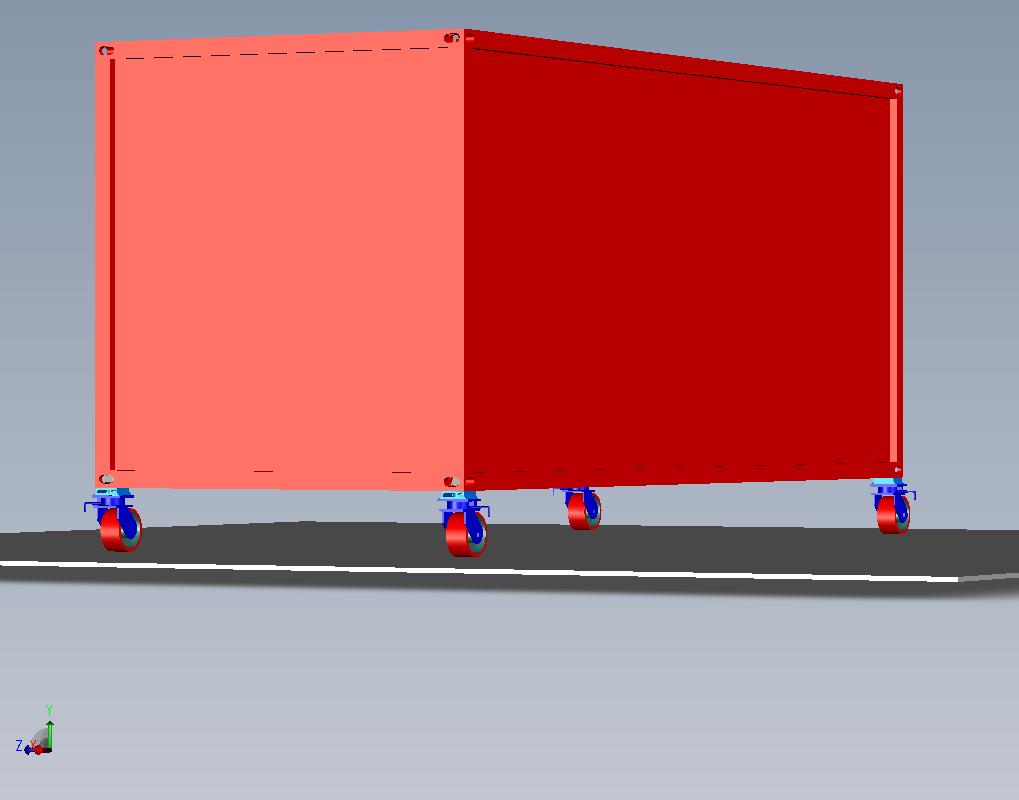

20 Foot Container with Casters - Render
20 Foot Container with Casters - Render

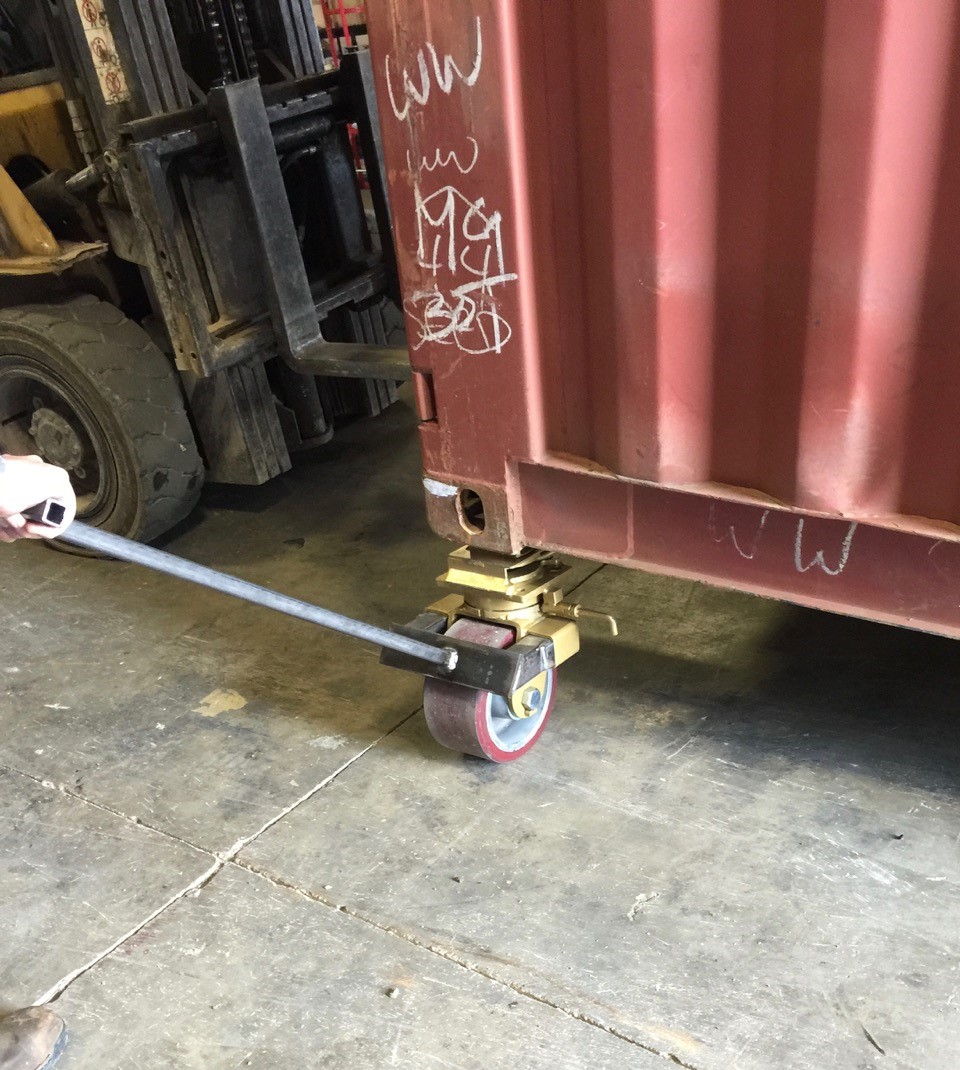

Container Casters with Twist Locks

Insert one in each corner casting to make your container mobile.

Model shown has capacity of 6000 lbs rated per wheel

Chassis King’s kingpinless style casters feature a unique single ball race design. This design provides a high strength swivel section that will swivel easily under heavy loads.

Constructed from drop forged C-1045 steel the swivel section features a large precision machined 4 inch single ball bearing load/thrust raceway. The unique design of this raceway actually places the ¾ inch diameter load/thrust ball bearings in shear, locking the swivel section together.

Caster legs are 3/8 inch x 4 inch formed and continuously welded both inside and outside.

Our 8 inch diameter roller bearing wheels have a 1-1/4 inch I.D. bearing and rotate on a 1-1/4 inch hardened and ground steel spanner bushing.

All tapered bearing wheels have a 1 inch tapered bearing and rotate on a 1 inch Grade 5 axle.

Polyurethane wheels feature a higher capacity material than rubber, longer wear, and will not damage your floors like cast iron or steel.

The caster is pre-lubricated before shipping.

Dual wheel caster designs are available for higher payloads.
