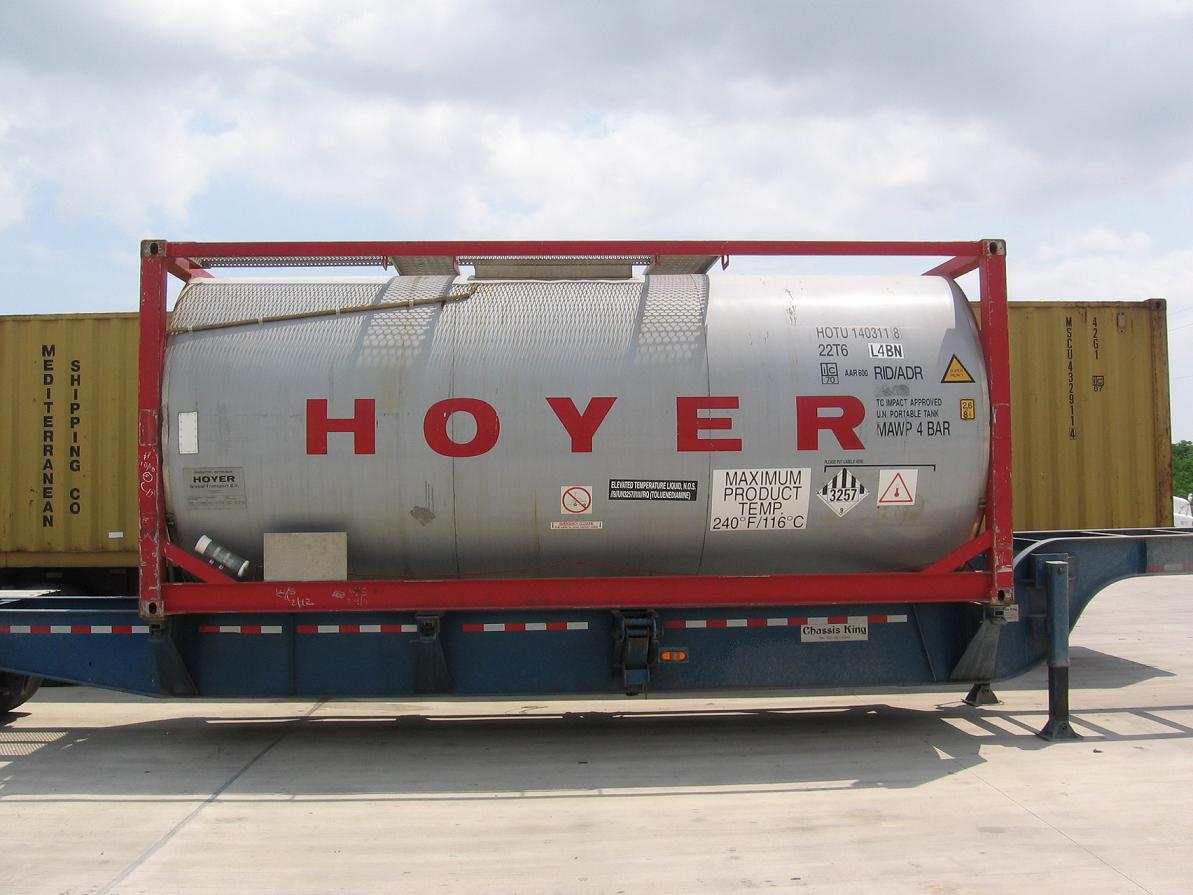

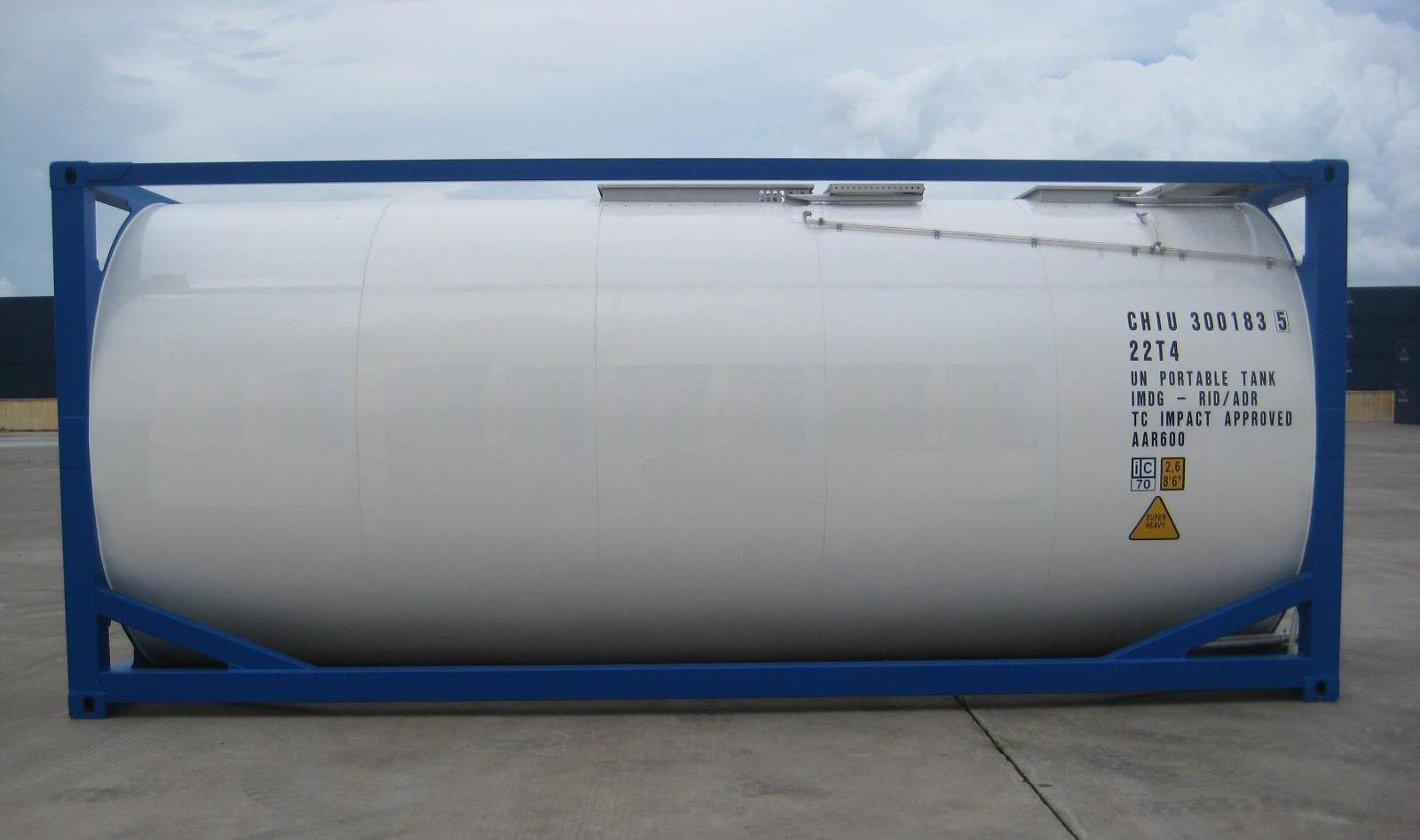

ISO Tank Container

Tank containers are used for liquid cargo such as foodstuffs (ie, fruit juices, spirits, sweet oils) and chemicals (ie, hazardous materials, such as fuels, toxic substances, corrosion protection agents).

Tank containers must be at least 80% full, to prevent dangerous surging of the liquids in transit. On the other hand, they must not as a rule be over 95% full, or there will not be sufficient ullage space for thermal expansion



We supply ISO Tank Containers in the following categories:



IMO 0: Shell made from 316 Stainless Steel

            Capacity of 12,000 – 26,500 liters nominal

For transport of: Wine, Fruit juices, Vegetable oils, Mineral Oils and Non-hazardous oils.



IMO 1: Shell made from 316 Stainless Steel

            Capacity of 12,000 – 26,500 liters nominal

            For transport of: Hazardous liquids

            Heating by steam or electric heating (optional)



IMO 2: Shell made from 316 Stainless Steel

            Capacity of 12,000 – 26,500 liters nominal

            For transport of: Low hazardous liquids



IMO 5: Shell made from 316 Stainless Steel

            Capacity of 15,000 – 25,500 liters nominal

            For transport of: Gases including propane and refrigerants

            Cooling by sun-shield



IMO 7: Shell made from 316 Stainless Steel of Carbon Steel

            Capacity of 20,000 – 24,000 liters nominal

            For transport of: Cryogenic gases including LNG
