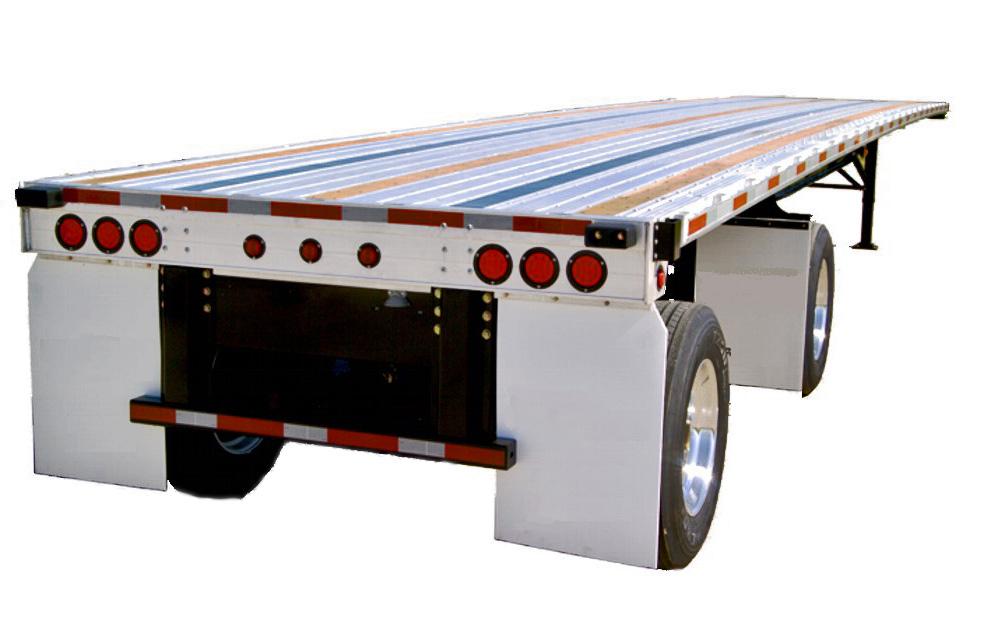

Composite Flatbed Trailers
A combination of steel/aluminum construction designed and engineered for significant weight savings and outstanding payload capacity. The steel provides greater strength and aluminum lower weight and corrosion resistance. The main rails have a capacity of 100,000 lb evenly distributed and a camber built in to eliminate sagging under heavy loads.
A variety of configurations and options are available to meet your specific requirements. Composite flatbeds come in standard lengths of 48 foot and 53 foot with either tandem or spread axle configurations. Options include aluminum wheels, toolboxes, load-securing devices such as chain tie-downs, bulkheads, and lift axles.
| 48 Foot Composite Flatbed Specifications | |
| adf | |
| Overall Length: | 48' |
| Overall Width: | 102" |
| King Pin Location: | 36" |
| Coupler Height: | 48” |
| Main Rails: | Fabricated hi-tensile steel I-beams, precambered, and with 100 Ksi flanges |
| Cross Members: | 4" 80 Ksi steel I-beam on 16" centers |
| Side Rails: | 6" extruded aluminum channels |
| Rub Rails: | 3" aluminum with pipe spools between aluminum stake pockets on 24" centers |
| Skirts: | Heavy-duty extruded aluminum front and rear |

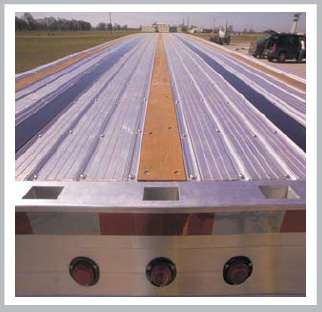

| Flooring: | Extruded Aluminum |

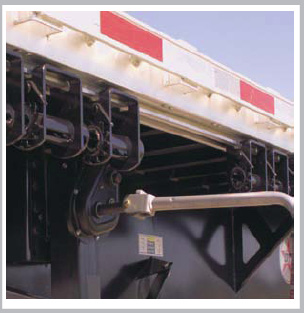

| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension | Air ride |
| Axles: | Two axles of 5” round and 25,000 lb beam capacity each; automatic type slack adjusters |
| Axle Centers: | 122" (Spread) |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | Radial tires on 10-hole disc wheels |

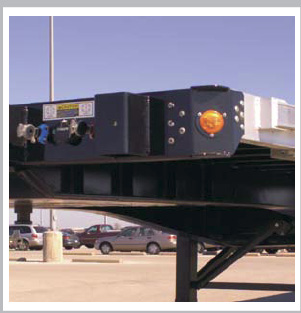

| Electrical | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumpers, and Mud Flaps |
53 Foot Composite Flatbed Specifications | |
| adf | |
| Overall Length: | 53' |
| Overall Width: | 102" |
| King Pin Location: | 36" |
| Coupler Height: | 48” |
| Main Rails: | Fabricated hi-tensile steel I-beams, precambered, and with 100 Ksi flanges |
| Cross Members: | 4" 80 Ksi steel I-beam on 16" centers |
| Side Rails: | 6" extruded aluminum channels |
| Rub Rails: | 3" aluminum with pipe spools between aluminum stake pockets on 24" centers |
| Skirts: | Heavy-duty extruded aluminum front and rear |
| Flooring: | Extruded Aluminum |
| Landing Gear: | Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes |
| Suspension | Air ride |
| Axles: | Two axles of 5” round and 25,000 lb beam capacity each; automatic type slack adjusters |
| Axle Centers: | 122" (Spread) |
| Brake System: | Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers |
| Tires / Wheels | Radial tires on 10-hole disc wheels |
| Electrical | 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights |
| Paint: | Commercial sandblast, primer, and high quality paint system |
| Other: | Conspicuity Tape, Bumpers, and Mud Flaps |
