Series 5000 Dump Trailers

Dump Trailers

Five Chassis King Dump Trailer models are available from a 1.5-ton model, which is ideal for landscaping or light construction use up to an 8-ton model which is built rugged enough for most farm or construction needs.

All models feature removable hinged tailgates, removable side panels and swivel clevis type hitch. Tongue Jacks are standard on all models.

All tandem axle models feature a center pivot walking tandem axle, which allows uniform load distribution on uneven terrain.

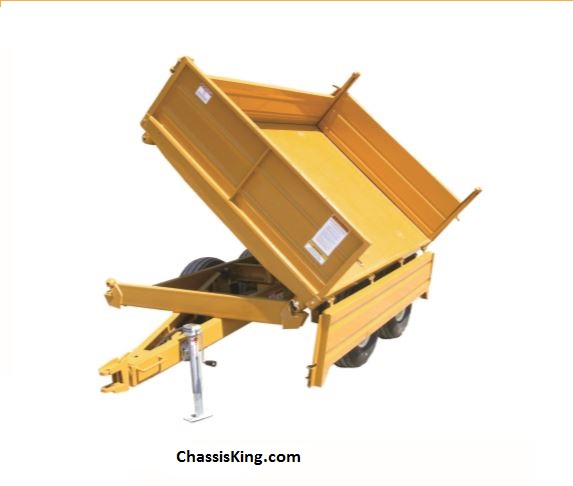

The 4 and 5 ton models feature a unique 3-way dumping design. This is possible by the use of an oscillating telescopic single acting cylinder. The dumping pattern can be changed from rear to right or left by the simple placement of two hinge pins.

Model 1.5 Ton 50x72 Features:

1.5 Ton Capacity

Rear Dump

Removable Reinforced Side and End Panels

2 Way Opening Tailgate

Swivel Clevis and Ball Hitch

Walking Beam Tandem Axle with 18 x 1.5 x 8 Tires Double Action Cylinder

Fold Away Tongue Jack

Model 2.5 Ton 60x96 Features:

2.5 Ton Capacity

Rear Dump

Removable Reinforced Side and End Panels Walking Beam Tandem Axle with 23 x 8.5 x 12 Tires Swivel Clevis Hitch

Double Action Cylinder

Fold Away Tongue Jack

Model Four ton 63x99 Features:

4 Ton Capacity

3 Way Dump (Right, Left, or Rear)

3 Stage Single Action Telescope Hydraulic Cylinder Single Axle with 11L x 15 Tires

Removable Reinforced Side and End Panels Swivel Clevis Hitch

Fold Away Tongue Jack

Optional Grain Gate

Model Five Ton 63x99 Features:

5 Ton Capacity

3 Way Dump (Right, Left, or Rear)

3 Stage Single Action Telescope Hydraulic Cylinder Walking Beam Tandem Axle with 11L x 15 Tires Removable Reinforced Side and End Panels Swivel Clevis Hitch

Fold Away Tongue Jack

Optional Grain Gate

Model Eight Ton 60x120 Features:

8 Ton Capacity

Rear Dump

2 Double Action Cylinders

Walking Beam Tandem Axle with 11L x 15 Tires Swivel Clevis Hitch

Removable Reinforced Side and End Panels Fold Away Tongue Jack

Optional Grain Gate
