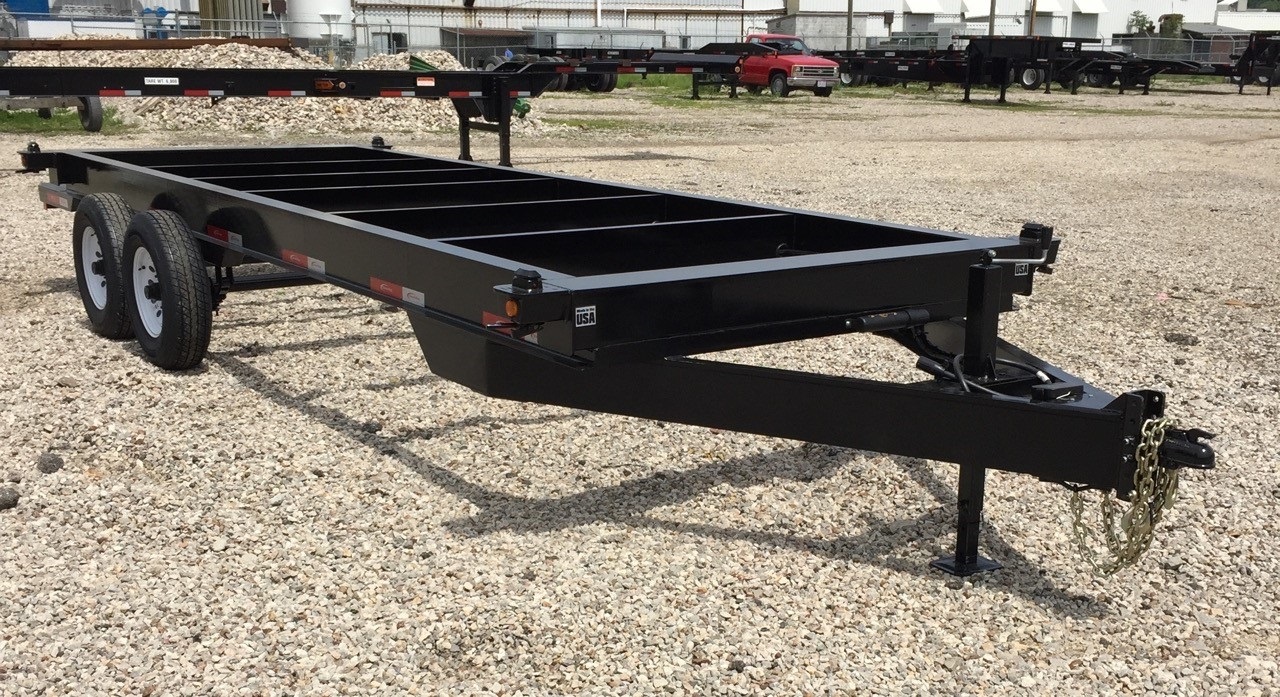

20 Foot Tag / Pull Chassis

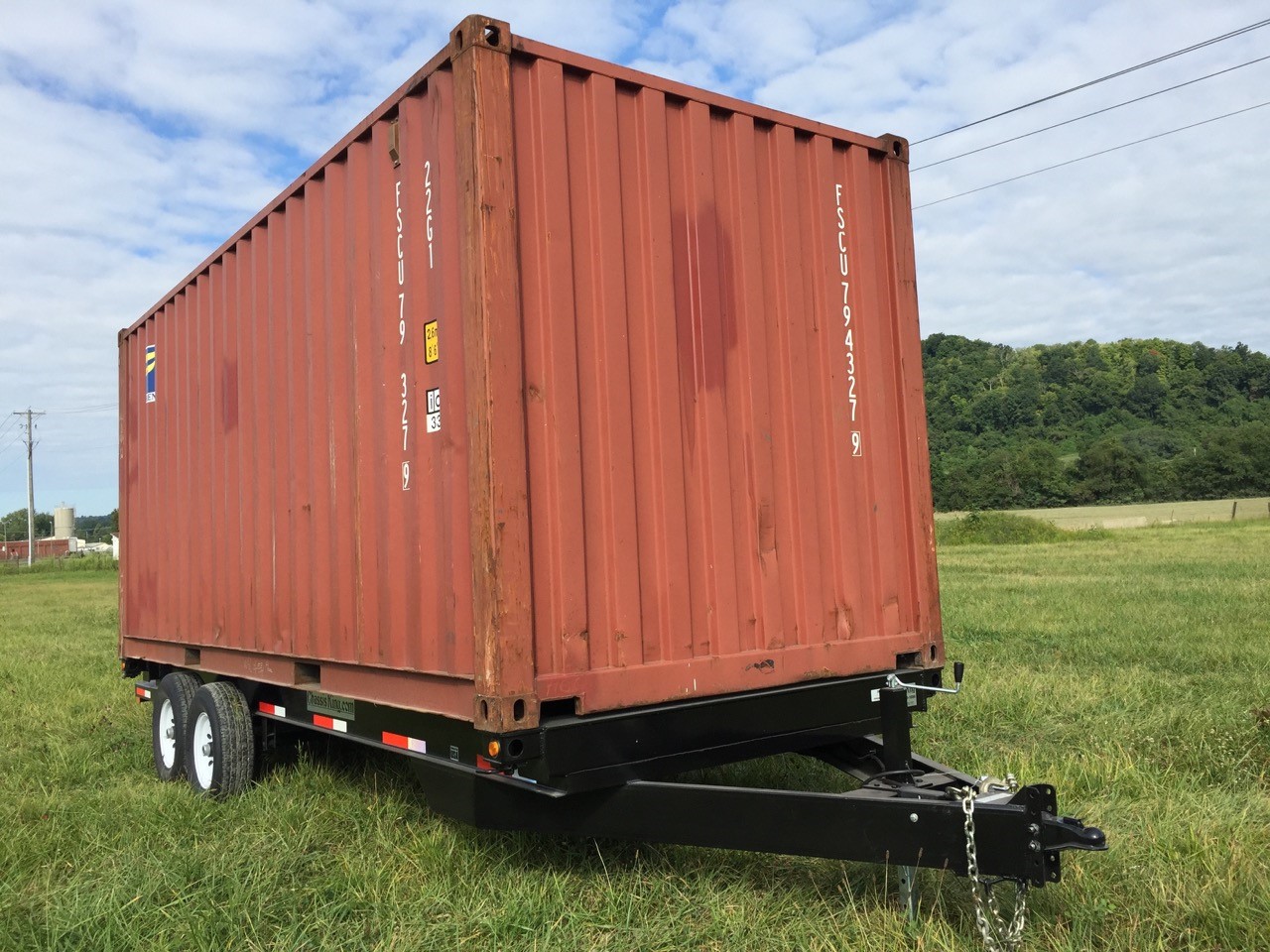

Want to haul a light 20ft ISO container with a pick-up truck ?? Then our 20 foot Tag (or Pull) Chassis may be the answer. Gooseneck option and higher capacities are available.
20 Foot Tag Chassis Specifications:
s
Deck Length:
20'
Deck Height:
30' 7/8"
Width:
96"
GVWR:
13,000 lbs
Tare Weight:
3,800 lbs
Axles:
Two axles of 6,000 capacity each
Brakes:
Electric on both axles
Tires:
225 / 75R15 D
Jack:
12,500 lbs rating
Twist Locks:
Cast steel to engage ISO corner castings
Paint:
Commercial sandblast, primer, and high quality paint system
