20 Foot Flushback Container Chassis

Product Documents:     Click for 20 foot Flushback Chassis Flyer

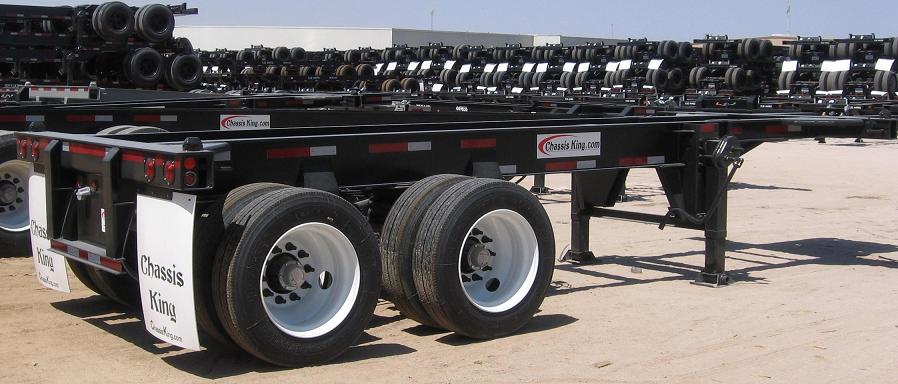

20 foot Flushback Container Chassis
20 foot Flushback Container Chassis

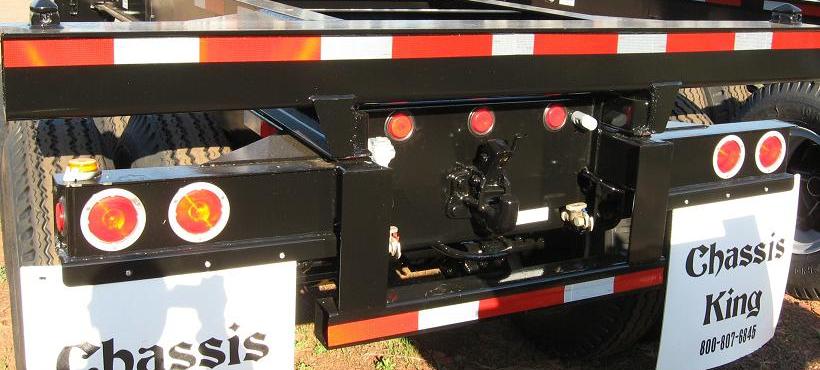

Rear Pintle Hook
Rear Pintle Hook

The length of this 20 foot chassis is fixed at 23’6” and used for the stevedoring and transportation of one 20 foot ISO container.


Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and  Truck Trailer Manufacturers Association (TTMA) standards.

Spring suspension, 10x20 tires on 5 spoke wheels, ABS, and two speed landing legs are all standard. Options include radial tires on 10-hole disc wheels, air suspension, and pintle hooks for doubles operations.

Chassis can be stacked up to 5 high for power only transport

20 Foot Flushback Specifications:
Overall Length:  23’-6”
Overall Width: 96”
King Pin Location: 18” from front of chassis
Coupler Height:  48”
Tare Weight: 6,500 lbs
Main Rails: Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams. Wide flange 12” in depth 19 lbs/ft.
Landing Gear: Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension: Hutch with Three Leaf Springs (11,000 lb capacity each)
Axles: Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters
Brake System: Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels  10.00 x 20 tires on 5 spoke wheels
Electrical: 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Twist Locks: Cast steel to engage ISO corner castings
Paint:    Commercial sandblast, primer, and high quality paint system
Other: Conspicuity Tape, Bumper, 24 x 30 Mud Flaps
