40 Foot Straight Frame 8 Pin Chassis

Product Documents:     Click for 40ft SF 8-Pin Flyer

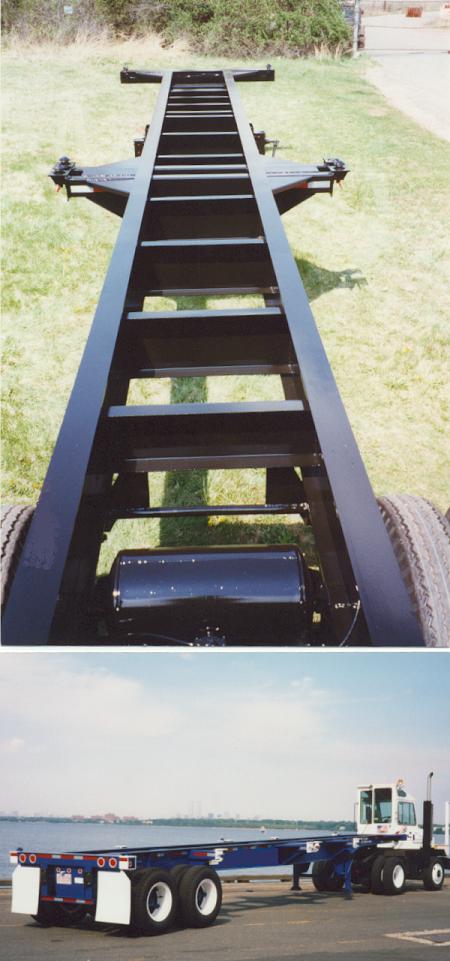

40 Foot 8 Pin 20/40 Combo Chassis
40 Foot 8 Pin 20/40 Combo Chassis

This fixed length combination chassis is designed for the stevedoring and transportation of two 20' or one 40' ISO containers but because it is a straight frame, only standard ones.

Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.

Some of the standard components include spring suspension and 10x20 tires on 5 spoke wheels.  Air suspension and 11R22.5 radial tires on 10-hole disc wheels are two of the options.

Chassis can be stacked up to 4 high for power only transport

40 Foot SF 8-Pin Specifications:
Overall Length:  40’-6”
Overall Width: 96”
King Pin Location: 30.5"
Coupler Height:  48”
Tare Weight: 10,100 lbs
Main Rails: Fabricated high strength steel main beams
Landing Gear: Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes
Suspension: Hutch with Three Leaf Springs (11,000 lb capacity each)
Axles: Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters
Brake System: Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers
Tires / Wheels  10.00 x 20 tires on 5 spoke wheels
Electrical: 12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights
Twist Locks: Cast steel to engage ISO corner castings
Paint:    Commercial sandblast, primer, and high quality paint system
Other: Conspicuity Tape, Bumper, 24 x 30 Mud Flaps
