Swap Tanks

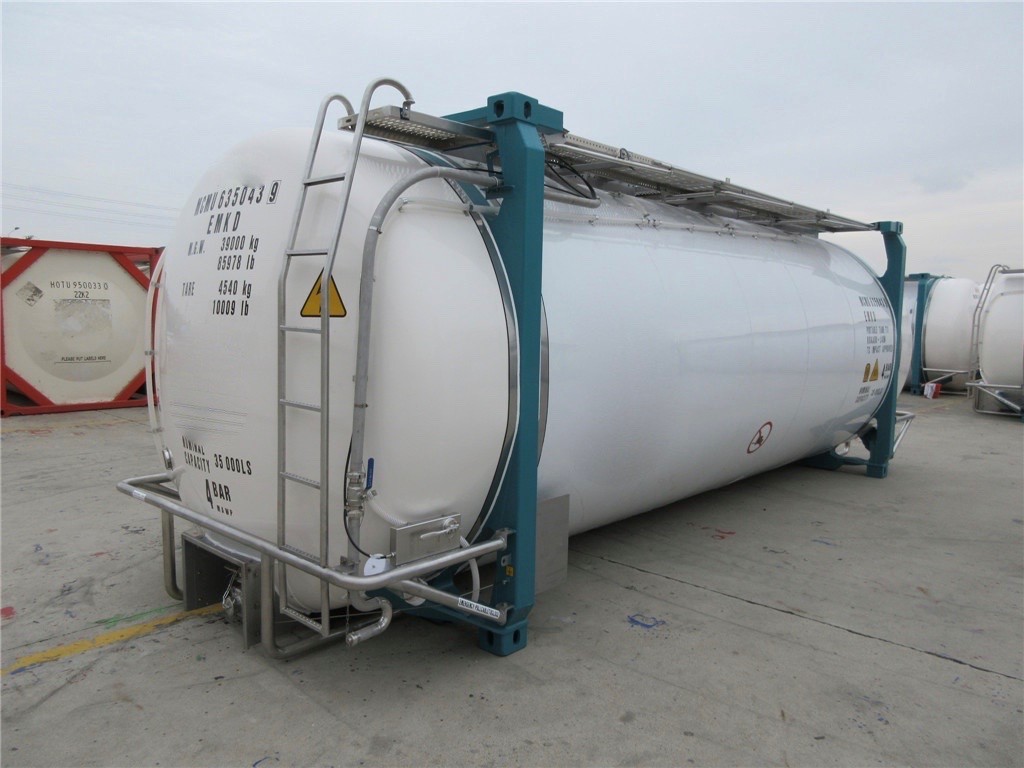

Swap Tank ISO

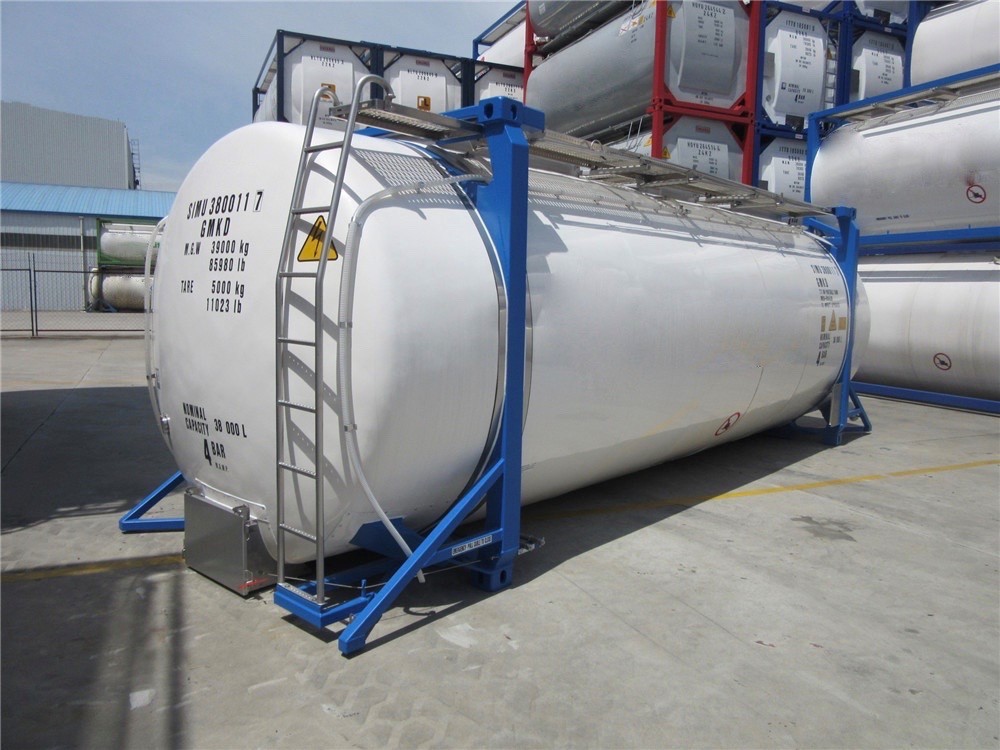

Swap Body Tank Container

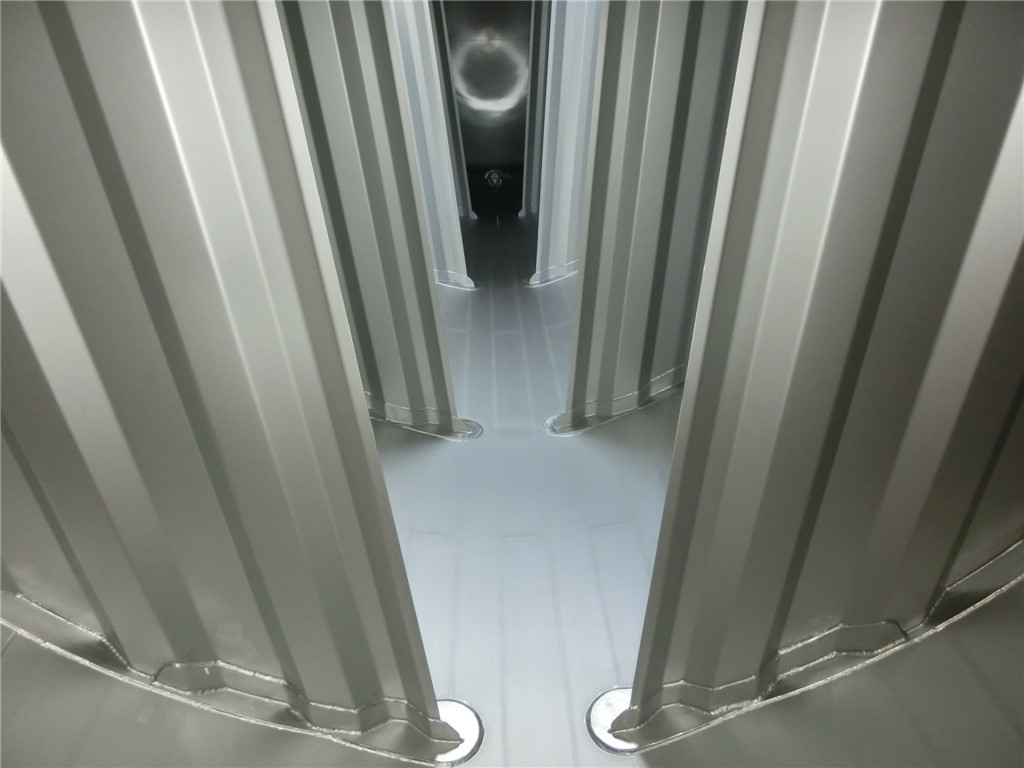

ISO tank Baffles

T11 Insulated Tank Swap Bodies are designed for hazardous and non-hazardous and food grade bulk liquid cargo. Swap Tanks allow for the transportation of larger volumes of up to 35,000 liters.

Swap Tank with welded or removable baffles

Frame Material	JIS G3125 SPA-H or equivalent
Tank Material	SANS 50028-7 Type 1.4402/1.4404
Capacity	35,000 Ltr (± 0.75%)
Frame (Length/Height/Width)	7820mm / 2550mm / 2670mm
Tare Weight	4630 kg
Max Gross Weight	39,000 kg (± 3% Tolerance)
Working pressure:	4 bar
